Hardened Steel · Mold & Die · up to 67 HRC
Precision hard-milling end mills engineered for hardened steel up to 67 HRC. The Sentinel 67 series delivers the geometry, coating, and manufacturing tolerances that mold & die shops need for finish-quality surfaces directly off the spindle — with FLATCOAT® TTN for maximum wear resistance.
02 Coating Technology
The PVD nanocoating engineered to survive the extreme heat and abrasion of hardened steel machining — where surface finish is everything and tool life defines profitability.
[ COATING TECHNOLOGY ]
FLATCOAT® TTN uses Physical Vapor Deposition to apply a proprietary nanocoating with exceptionally high density and hardness. The result is a smooth, droplet-free surface with anti-friction properties — critical in hard milling where coating roughness transfers directly to the workpiece.
The smooth, homogeneous surface reduces friction at the cutting edge, lowers heat generation, and resists the adhesive wear that destroys tools in hardened steel. This means finish-quality surfaces directly off the machine, reducing or eliminating manual polishing on mold cavities.
Because FLATCOAT® TTN maintains its integrity at temperatures up to 1100°C, it stays effective through the sustained heat of high-speed hard milling — where lesser coatings oxidize and fail.
Standard PVD Coating
FLATCOAT® TTN Nanocoating
Extreme hardness for sustained cutting performance in steels up to 67 HRC
Thin, precise layer preserving edge sharpness while maximizing wear protection
Maintains structural integrity through the extreme heat of high-speed hard milling
Smooth, droplet-free surface reduces friction and heat at the cutting interface
The droplet-free coating surface means the tool face is as smooth as possible — roughness on the tool transfers to the workpiece, so a smoother coating means less polishing on your mold cavities.
High hardness combined with thermal stability means FLATCOAT® TTN resists the adhesive and abrasive wear mechanisms that destroy tools in hardened steel — keeping per-part costs predictable.
Engineered for high-speed cutting strategies in both dry and wet environments. The 1100°C thermal ceiling means the coating stays intact even when coolant isn't an option.
03 Edge Technology
Precision-engineered for the most demanding material class in mold & die — hardened tool steels where surface finish, dimensional accuracy, and tool life define profitability.
The Problem

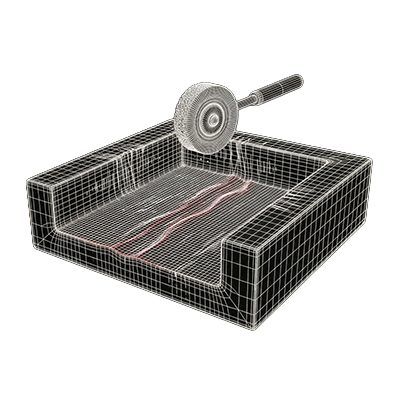

In hardened steel mold making, the milling machine is only half the process. Most shops still spend hours hand-polishing mold cavities after machining because their tools can't deliver finish-quality surfaces. Even small runout errors cause uneven edge engagement — one flute does the cutting, while the others just rub, creating chatter marks and inconsistent surface texture.
The polishing bench becomes the real bottleneck: labor-intensive, skill-dependent, and impossible to automate. Every hour spent polishing is an hour the machine could be cutting the next job.
The Sentinel 67 Solution →

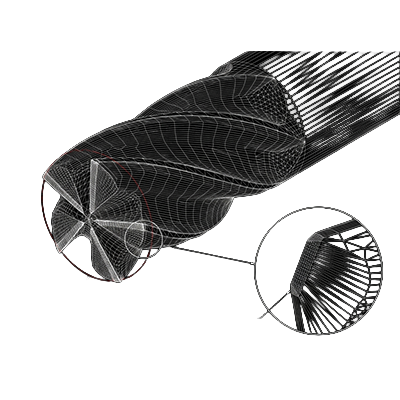

Sentinel 67 tools are manufactured to h4 quality shanks with 0.003 mm concentricity and 0.005 mm form accuracy. Every cutting edge undergoes post-treatment to create an extremely fine microgeometry — strengthened against micro-chipping while maintaining the sharpness needed for finish-quality cuts.
The result: all flutes engage evenly, surface finish comes directly off the spindle, and polishing time on mold cavities is dramatically reduced or eliminated entirely.
The Problem
Cutting hardened steel above 60 HRC pushes ordinary tools to their failure threshold every pass. Standard tools deliver wildly inconsistent life — sometimes 50 cavities, sometimes 5 — because nothing in their design is engineered specifically for the thermal and mechanical loads of hard milling. They're general-purpose tools forced to do specialist work.

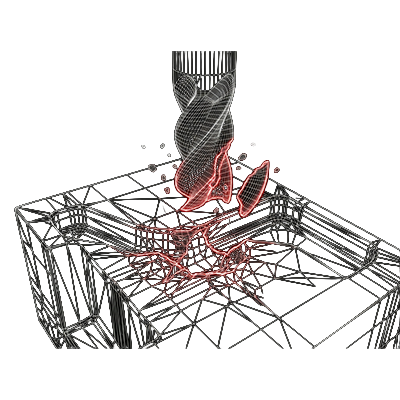

The cost shows up where it hurts: an unexpected mid-cavity failure scraps a $3,000+ hardened blank and the spindle hours already invested in it. Production planning becomes guesswork. Lights-out machining stays off the table because no one will leave a $3,000 blank running unattended on a tool that might fail in the next hour.
The Sentinel 67 Solution →

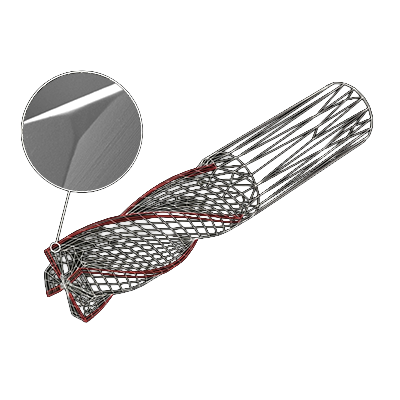

The “67” in the name is the hardness rating the entire tool is built around. Premium fine-grain carbide substrate, edge geometry tuned specifically for hard-milling cutting forces, and FLATCOAT® TTN’s thermal stability are engineered as a single system — not a general-purpose tool retrofitted for steel.
The result is tool life that’s predictable to within tight bounds across batches — not just longer on average, but consistently within a known window. That predictability is what turns lights-out machining from aspiration into scheduling.
[ DEMONSTRATION ]
Watch Sentinel 67 tools machine a hardened steel mold cavity — from high-feed roughing to finish-quality surfaces in a single setup.
Zecha archive footage
04 Sample
Running hardened steel molds and want to see what the Sentinel 67 series can do? Our sample box lets you test the FLATCOAT® TTN coating and precision-ground geometry on your own machine — on your own steel — before committing to a full set.
"The accuracy I get with these tools is dialed in part after part, and the cutting edge holds where other tools start drifting. They've become the standard on our hard-steel work."
CNC Machinist · Tucson, Arizona, USA
